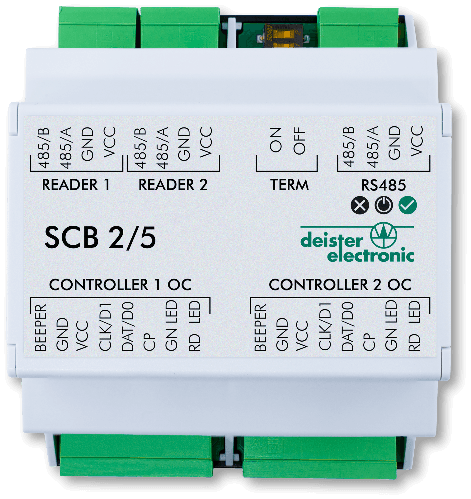

SCB 2/3 cipherBox for 1 Lesegerät, SAM (optional), Rijkspas
Product information
The SCB 2/5 cipherBox® enables a cost-effective upgrade of the existing access control system to secure card technology without having to adapt or replace the controller and software. The cipherBox® is installed in the secure area between the reader and controller. The cipherBox® decrypts and translates the data of the new secure identification media from the reader for the controller so that the controller does not need to be adapted or replaced.
Technical Data
Dimensions WxHxD: 72 x 90 x 61 mm
Housing material: PC
Mounting: DIN rail mounting
Operating temperature: +5...+55 °C
Relative humidity: 5...95 %, non-condensing
Energy supply: 12...24 VDC <350 mA
Frequencies: 125 kHz / 13.56 MHz
Transponder technologies:
ISO14443A+B, ISO15693, MIFARE DESFire
125 kHz: HID® prox, proxEntry, HITAG, EM
Legic Prime, Legic Advant, HID® I-Class
Encryption: MIFARE Classic, AES, HITAG 2 crypto
Reader reach: Depending on technology up to 40 mm
Signalling: Yellow LED
Interface(s): Open collector, RS485
Supported SAM Modules: AV1 / AV2
Protocols: Wiegand, Data/Clock, Magstripe, deBus, deBus crypt, OSDP V2, customised
